DESCRIPTION

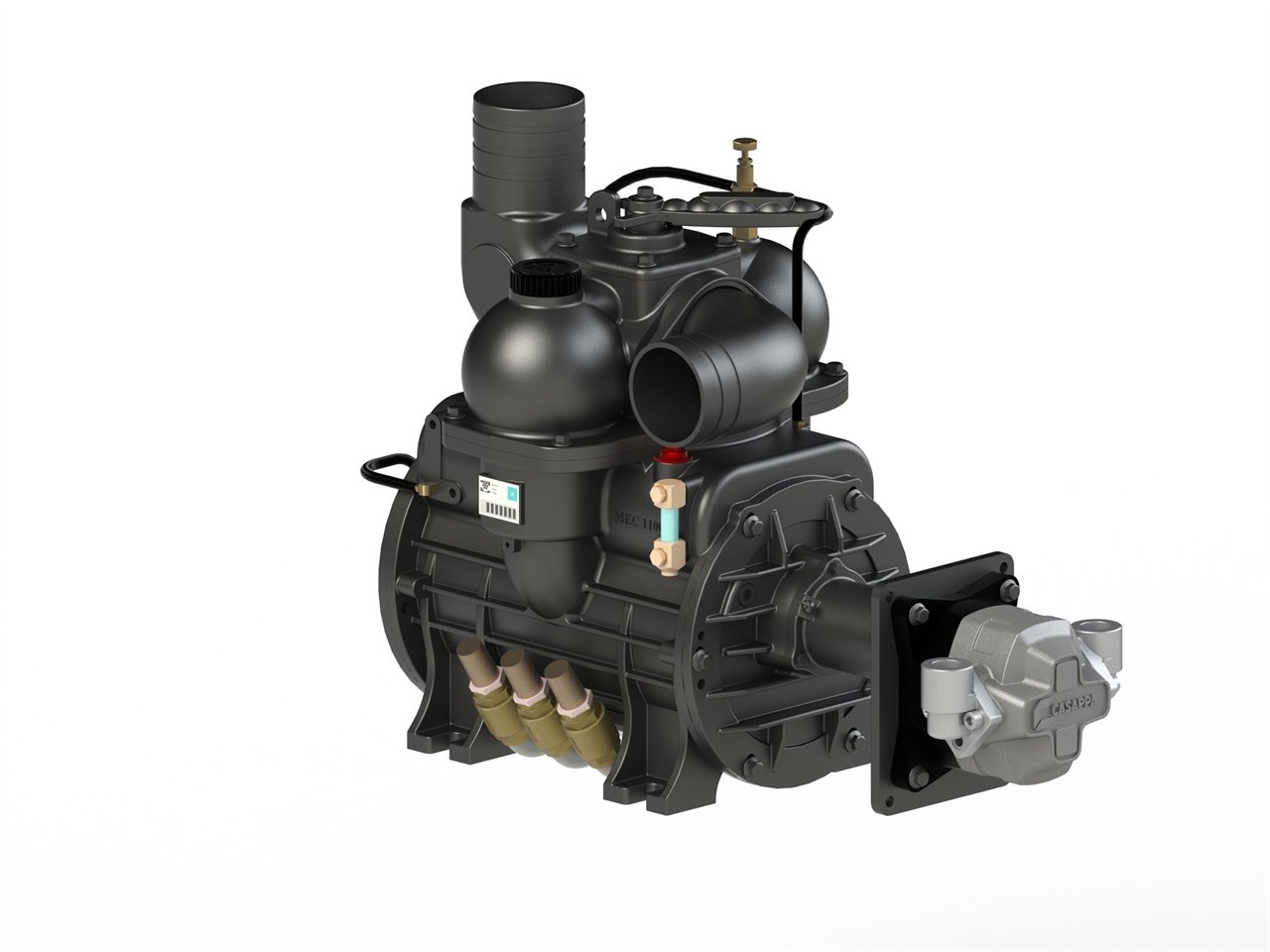

BALLAST II – RELIABLE, SECURE

From collaboration with SPRInT, the Engineering and Research Team of the Industrial Engineering Department of the University of Parma, BALLAST II was born, an evolution of the historic and reliable MEC series.

The MEC II series is characterized by an important process of technological innovation and product development , which makes it possible to obtain a product with reduced weight and dimensions , in the face of high flow rates and increased structural strength .

The Crash Protection System protects the body and rotor in case of accidental breakage of the pallets. The user is able to repair the pump directly in the field to prevent expensive machine stops.

BALLAST II is equipped with the latest generation automatic air injection cooling system, which also allows continuous use at 70% vacuum.

The automatic air injection cooling system allows longer service life even at maximum vacuum (95%)

Ideal for heavy duty applications.

Standard equipment: Air Injection Cooling, Long Life Palette, crash protection system, forced lubrication, external oil level indicator, side exits, swivel curve, FKM rods.

AVAILABLE MODELS: BALLAST 9000 / BALLAST 11000 / BALLAST 13500

Flow rate from 9030 l / min to 13845 l / min (541-831 m3 / h – 319-489 cfm)

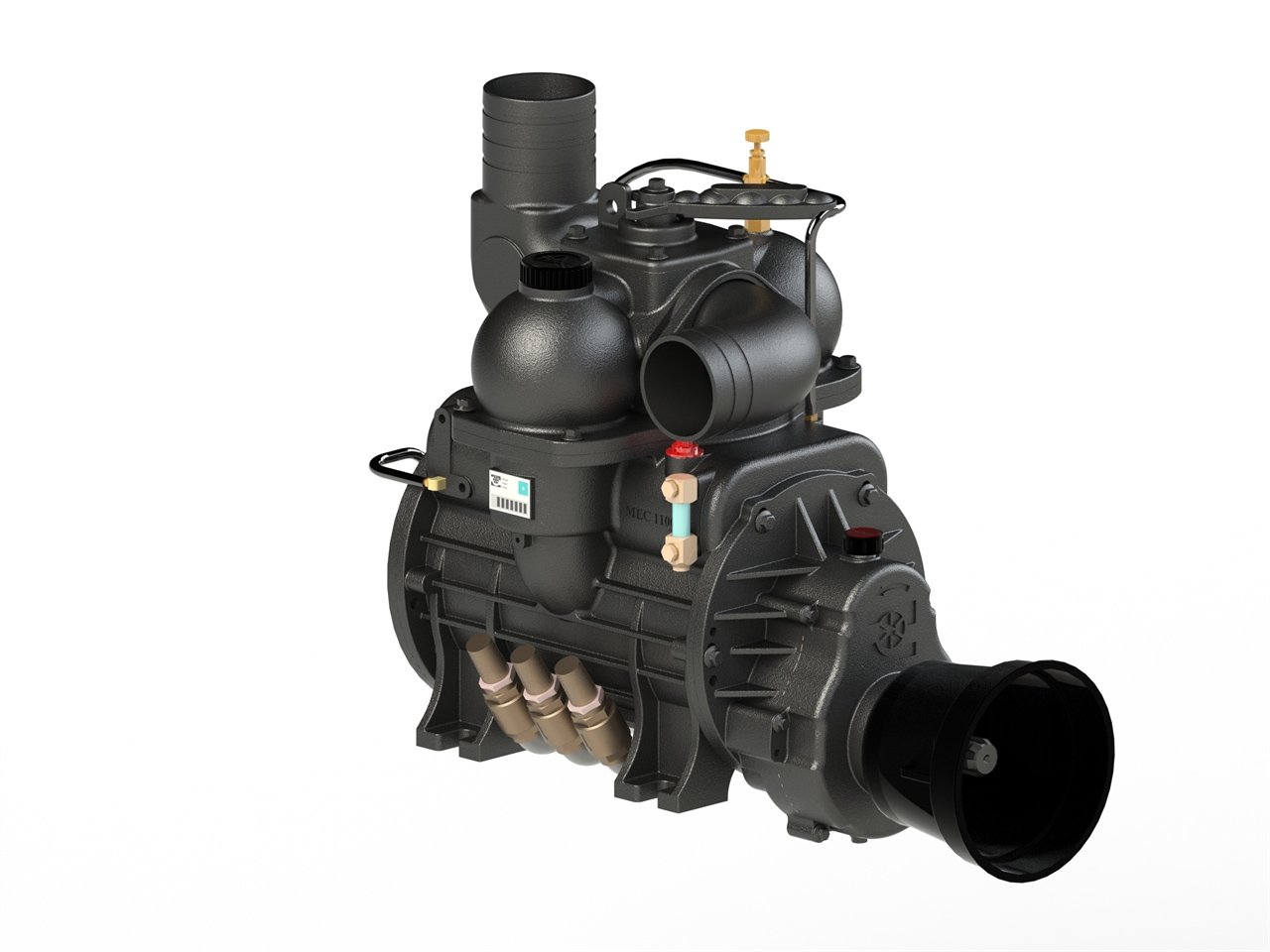

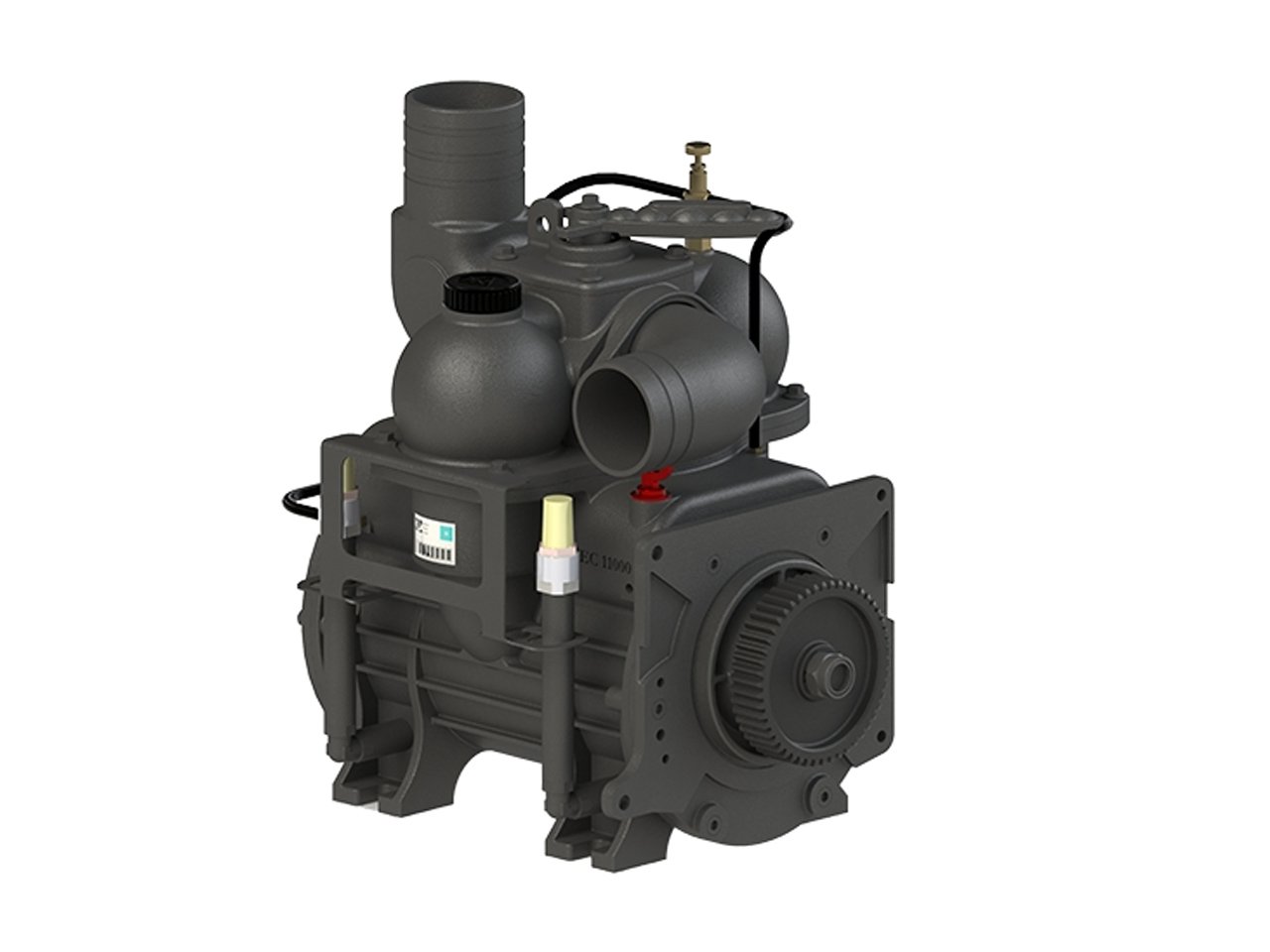

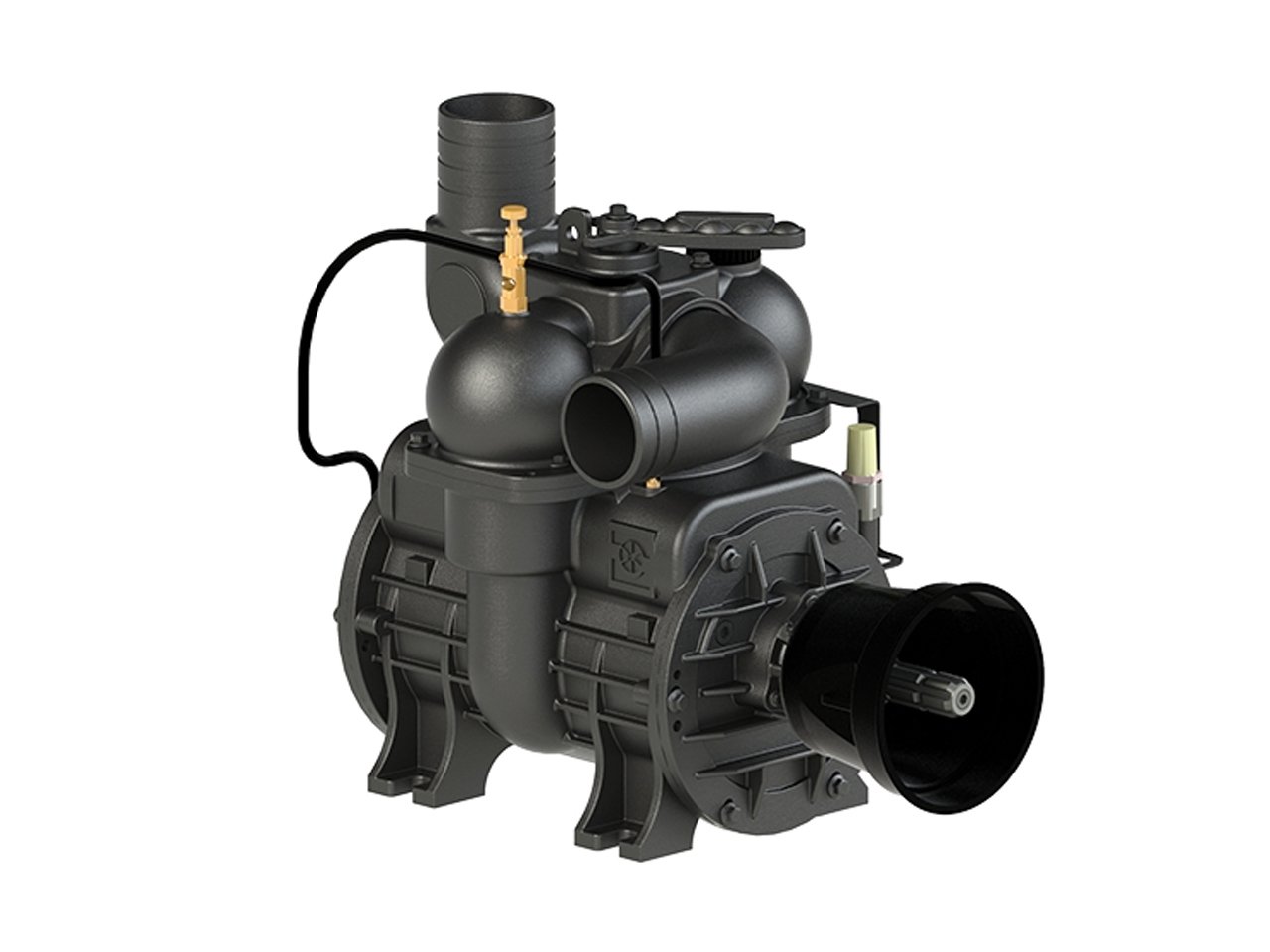

OTHER VERSIONS

Smooth shaft with key

Drive shaft with shaft 1000 rpm

With multiplier for shaft drive 540-1000 rpm

With multiplier for shaft drive 540-1000 rpm

For coupling on GARDA / LEDRA combined groups at 540-1000 rpm
